API tour

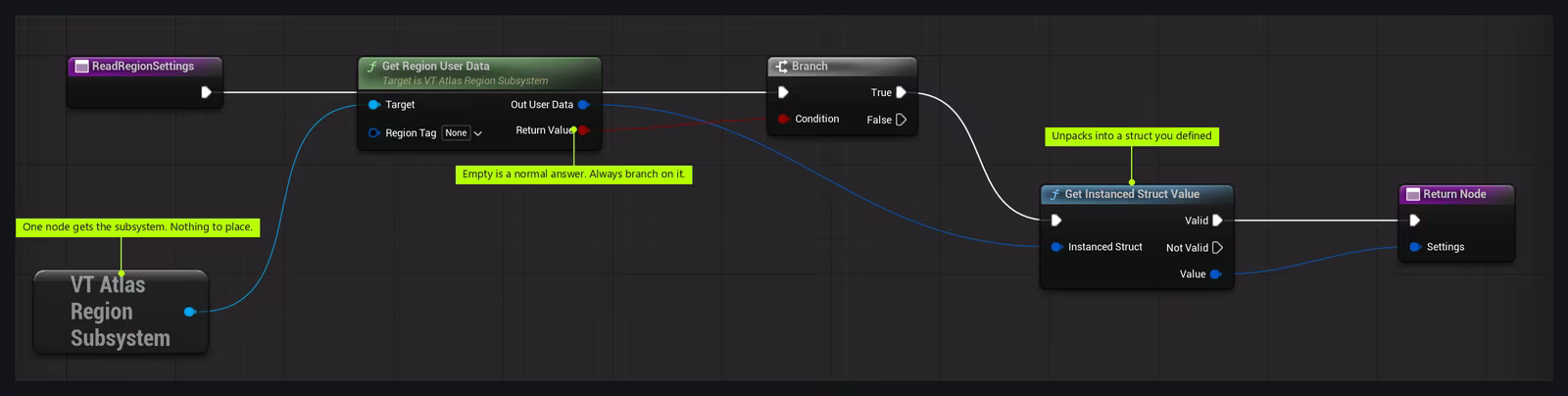

Everything here is callable from Blueprint. Get the VT Atlas Region Subsystem from the world and the whole query surface is on it.

Read Concepts first if you have not: Exact and Or Nested appear in almost every name here and they answer different questions.

Asking about an actor

Node	Answers
Is Actor In Region Exact	Is the actor inside a volume that literally carries this tag
Is Actor In Region Or Nested	Is the actor in this region or anything under it
Get Actor Regions Exact	Every tag a volume authored that currently holds this actor
Get Resolved Region	The one region the actor is in, by the documented rule
Get Time In Region	How long the actor has been in this region, counting nested

Get Actor Regions Exact returns an array, not a tag container, and that is deliberate. A gameplay tag container fills in parent tags on every add, so a container holding Castle.Keep.Hall answers yes to "do you have Castle.Keep" no matter how it was built. "Exactly these tags" cannot be expressed in that type, so the plugin does not pretend otherwise.

Get Time In Region returns false when the actor is not in the region, which is not the same as zero seconds. An actor that entered this frame has been there for zero seconds. Check the return value before you draw the number.

Asking about a region

Node	Answers
Get Actors In Region Exact	Who is inside a volume carrying this tag
Get Actors In Region Or Nested	Who is in this region or anything under it
Is Region Defined	Does any volume carry this tag right now
Get Region Display Name	The name from the region definition asset, if one supplies it
Get Child Regions With Volumes	Regions under this one that actually exist in the level
Get Child Regions In Tag Table	Regions under this one in the project's tag table

The last two are genuinely different questions. The tag table lists what a designer has named; the volume list is what the level actually contains. A minimap wants the second one.

Every container query returns a stable order. Two machines running the same level get the same array, which matters more than it sounds: gameplay tags cannot be sorted with the obvious comparison, because it reports Zone1 and Zone01 equal while equality reports them different.

Asking about a place

Find Regions At Location Exact and Find Regions At Location With Parents answer which regions contain a world point, with no actor and no overlap involved. Use them for spawn selection, for placing something sensibly, or for a cursor.

These test the shape, not its bounding box. A rotated box does not claim the corners of its bounds, and a spline region does not claim the space its outline wraps around.

Hearing about crossings

Three surfaces, and Concepts explains when to use which.

The Region Occupant interface, on an actor:

• On VTATL Region Entered Exact / Exited Exact
• On VTATL Region Entered Or Nested / Exited Or Nested

The Region Listener component, on an actor:

• On Entered Region / On Exited Region, filtered by Watched Regions
• On Current Region Changed, carrying the region info with a display name
• Get Current Region, Get Time In Region

Watching a region also watches everything nested under it: watch Castle.Keep and you hear about Castle.Keep.Hall. Leave Watched Regions empty to hear about everything.

The subsystem's delegates, for anything that is not the actor crossing:

• On Actor Entered Region Exact / Or Nested, and the two exits
• On Region Added / On Region Removed, when a region appears in or disappears from the world

The last pair is about level content, not actors. It fires for the first volume carrying a tag and the last one leaving, and never for the ones in between, which is what a minimap actually wants.

Placing regions

Four actors, all placed and sized like any trigger:

• VT Atlas Region Volume (Box)
• VT Atlas Region Volume (Sphere)
• VT Atlas Region Volume (Capsule)
• VT Atlas Region Volume (Spline) - draw a closed spline, set the height range, press Rebuild Footprint

Each carries a Region Tag, or points at a Region Definition asset that supplies one along with a display name. A definition is worth it when several volumes share a region: change the name once.

Shared settings on every volume:

• Priority, which decides the resolved region when volumes overlap
• Tracked Object Types, layer zero
• Occupant Filter, layer one
• Explain Actor Tracking, the node to call when nothing happens

For C++

The queries are on UVTATLRegionSubsystem with the same names. Two extension points:

IVTATLRegionOccupant - override the _Implementation you care about. Test with Implements<UVTATLRegionOccupant>(), never Cast<>: a cast silently misses actors that implement the interface in Blueprint.

AVTATLRegionVolumeBase - the shape family's base. Deriving is supported; CaptureShape is what a sibling overrides to describe its geometry.

The registration seam takes plain data: build an FVTATLVolumeDesc and call Register Volume. It is public so a procedural level can make regions without placing actors. A descriptor with no shape becomes a box matching its bounds; a descriptor with a shape that cannot answer containment is refused rather than substituted.

From C++

Everything above is equally callable from C++. Add the module dependency and include the subsystem:

// YourModule.Build.cs
PublicDependencyModuleNames.AddRange(new[] { "VTAtlas", "GameplayTags" });

#include "VTATLRegionSubsystem.h"

The three questions

UVTATLRegionSubsystem is a world subsystem: one per world, nothing to place, nothing to initialise.

UVTATLRegionSubsystem* Atlas = GetWorld()->GetSubsystem<UVTATLRegionSubsystem>();
if (Atlas == nullptr)
{
    return;
}

// Is this actor in that region? "OrNested" counts the hierarchy, "Exact" does not.
const bool bInCastle = Atlas->IsActorInRegionOrNested(Pawn, TAG_Castle);

// Which single region is it in? False when the actor is in none, rather than an empty tag you
// then have to test separately.
FGameplayTag Resolved;
if (Atlas->GetResolvedRegion(Pawn, Resolved))
{
    FText DisplayName;
    Atlas->GetRegionDisplayName(Resolved, DisplayName);
}

// Who is in that region?
const TArray<AActor*> Occupants = Atlas->GetActorsInRegionExact(TAG_Vault);

Hearing about crossings

void AMyGameMode::BeginPlay()
{
    Super::BeginPlay();

    if (UVTATLRegionSubsystem* Atlas = GetWorld()->GetSubsystem<UVTATLRegionSubsystem>())
    {
        Atlas->OnActorEnteredRegionOrNested.AddDynamic(this, &AMyGameMode::HandleEntered);
        Atlas->OnRegionOccupied.AddDynamic(this, &AMyGameMode::HandleRegionOccupied);
    }
}

void AMyGameMode::HandleEntered(AActor* Actor, FGameplayTag RegionTag)
{
    // THIS RUNS ON THE SERVER AND ON EVERY CLIENT. Regions are computed from level content that
    // everyone loads, so anything awarded here is awarded once per connection unless you gate it.
    if (!HasAuthority())
    {
        return;
    }

    GrantAreaBonus(Actor, RegionTag);
}

void AMyGameMode::HandleRegionOccupied(FGameplayTag RegionTag)
{
    // The first occupant arrived. This carries no actor, which is the point: enters and exits are
    // not conserved once an actor is destroyed, so a count kept by hand drifts and this one cannot.
    ArmEncounter(RegionTag);
}

Dwell time

double Seconds = 0.0;
if (Atlas->GetTimeInRegion(Pawn, TAG_Arena, Seconds) && Seconds >= 120.0)
{
    CompleteObjective();
}

It returns false rather than zero when the actor is not in the region, because an actor that arrived this instant has genuinely been there for zero seconds and the two need telling apart.
